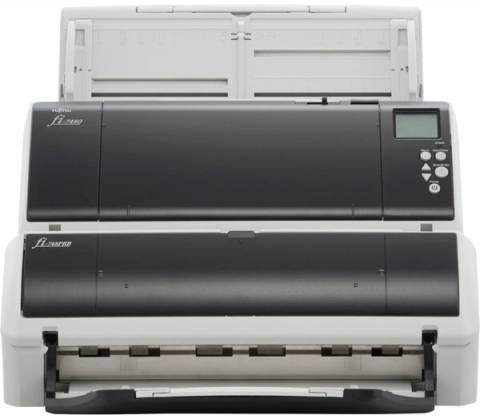

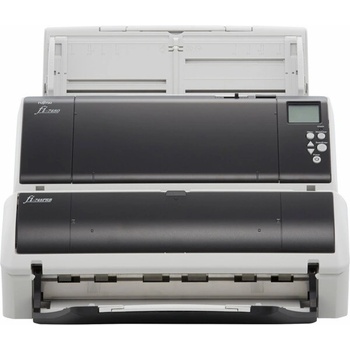

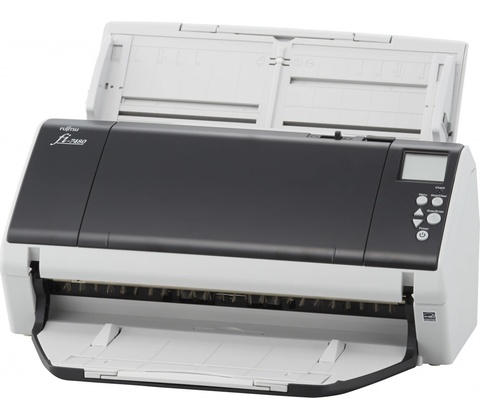

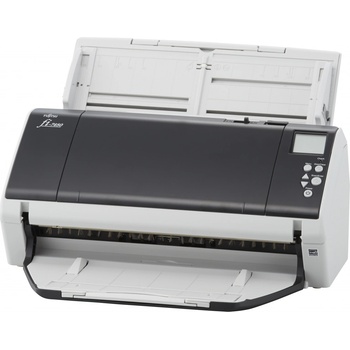

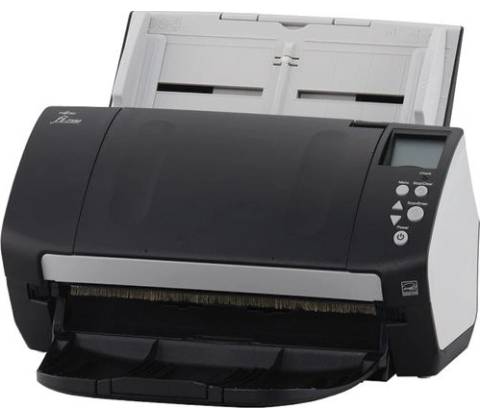

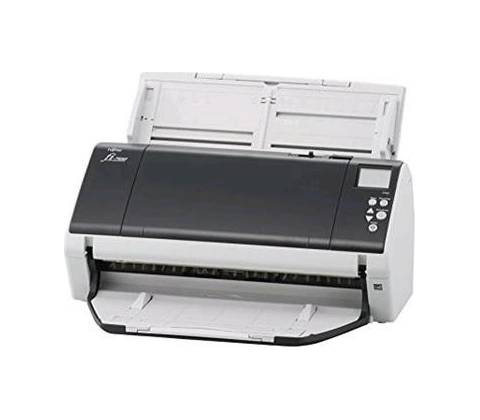

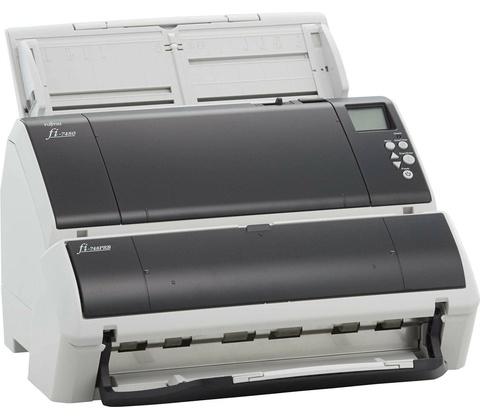

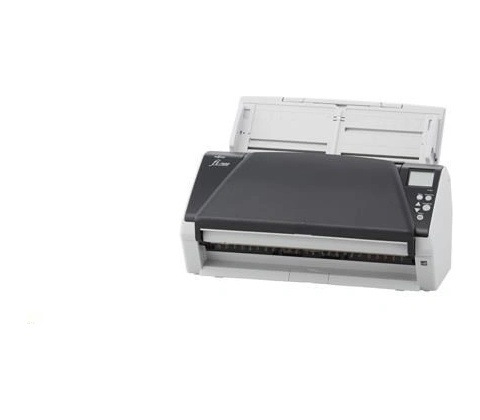

Fujitsu fi-7480

Description fi-7480

Functional Specifications

Image Sensor Type Color CCD (Charge Coupled Device) x 2 (front x 1, back x 1)

Light Source White LED Array x 4 (front s, back x2)

Multifeed Detection Ultrasonic multi-feed detection sensor x 1, Paper detection sensor

Optical Resolution 600 dpi

Output Format(1) Color (24-bit) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)(2)

Grayscale (8-bit)

Monochrome

Output Color Depth Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit

Internal Video Processing 4,096 levels (12-bit)

Image Processing Functions Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, De-Screen, Emphasis, Halftone, Dropout color (None /Red /Green /Blue /White / Saturation /Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Dither, Static threshold

Scanning Speed(3) (A4 Landscape) Color(4)

Grayscale(4)

Monochrome(5) Simplex: 80 ppm, Duplex: 160 ipm (200 dpi / 300 dpi)

Scanning Speed(3) (A4 Portrait) Color(4)

Grayscale(4)

Monochrome(5) Simplex: 65 ppm, Duplex: 130 ipm (200 dpi / 300 dpi)

Paper chute capacity (A4 Landscape)(6) 100 Sheets (A4: 80 g/m2 or 20 lb.)

Daily Duty Cycle 12,000 Pages

Document Size Minimum 50.8 mm x 69 mm (2 in. x 2.72 in.)

Maximum(7) 304.8 mm x 431.8 mm (12 in. x 17 in.)

Long page scanning(8) 304.8 mm x 5,588 mm (12 in. x 220 in. )

Paper Weight (Thickness)(9) Letter 27 to 413 g/m2 (7.2 to 110.6 lb.)

A8 sheets 128 to 209 g/m2 (34.3 to 56.1 lb.)

Card Up to 1.4 mm (10)

Interface USB 3.0 / USB 2.0 / USB 1.1 (backward compatible)

Minimum PC Specification PaperStream IP i5 2.5 MHz Processor, 4 GB RAM

Physical Specifications

Power Requirements 100 to 240 VAC ± 10 %

Power Consumption Operating: 43 W or less, Sleep mode: 1.4 W or less, Auto Standby(OFF) mode: Less than 0.35 W

Dimensions (WxDxH)(11) 380 mm x 209 mm x 168 mm (14.96 in. x 8.23 in. x 6.61 in.)

Weight 7.6 kg (16 lb.) or less

Environmental Compatibility ENERGY STAR® / RoHS

Operating Environment Temperature 5 °C to 35 °C (41 °F to 95 °F )

Relative Humidity 20 % - 80 % (non-condensing)

Included Items ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM

Included Software / Drivers PaperStream IP (TWAIN/ISIS) , Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series(12), 2D Barcode for PaperStream(12), Scan to Microsoft SharePoint(12), ABBYY FineReader for ScanSnap(12), Scanner Central Admin Agent

Options Post Imprinter (Back-side)

Supported Operating Systems Windows® 10 (32-bit/64-bit), Windows® 8 / 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Vista® (32-bit/64-bit), Windows Server® 2012 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit), Windows Server® 2008 R2 (64-bit)
